REBAR carbon
Walkable.
Highest performance.
Like steel only better.
Highest performance.
Like steel only better.

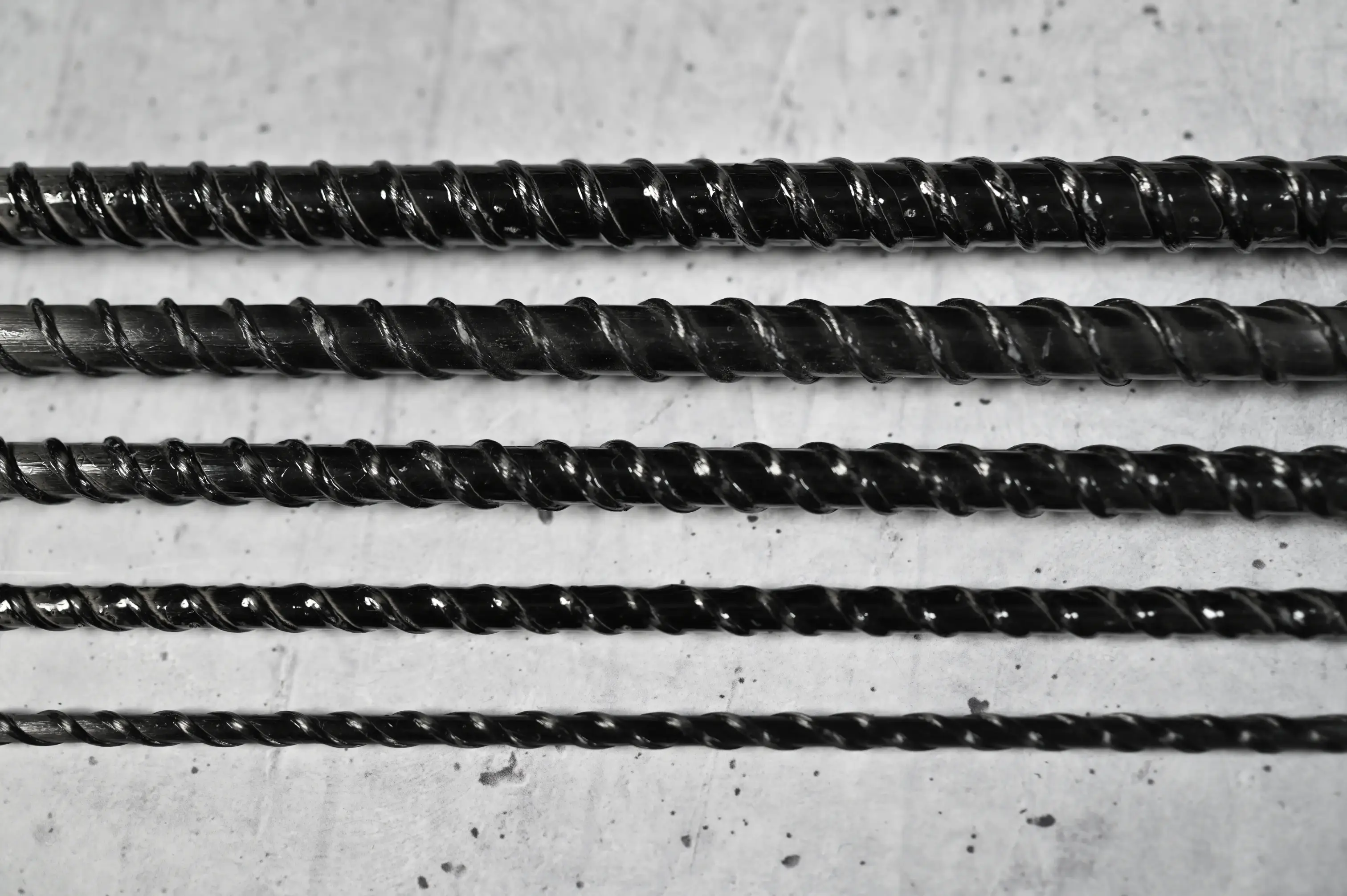

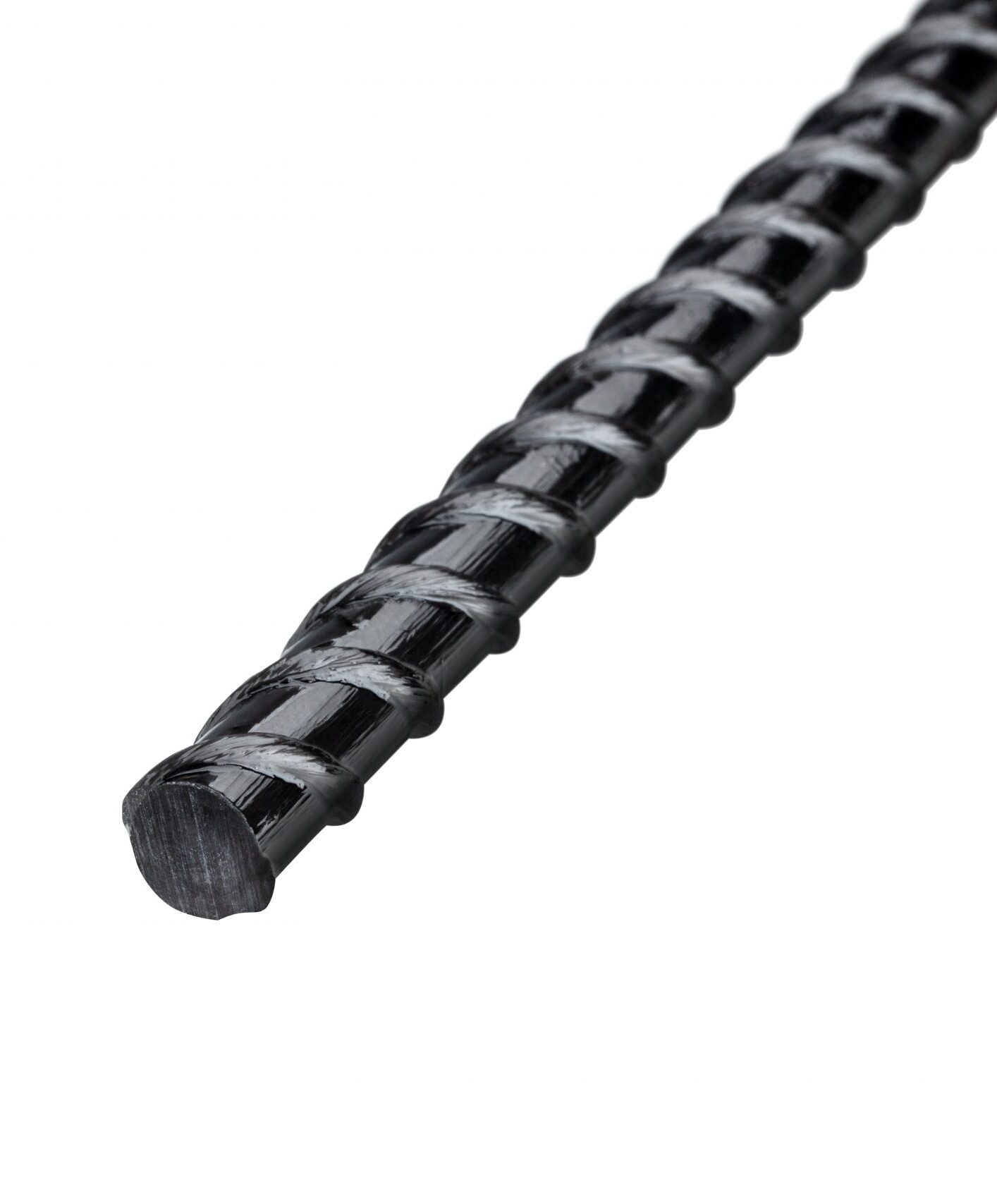

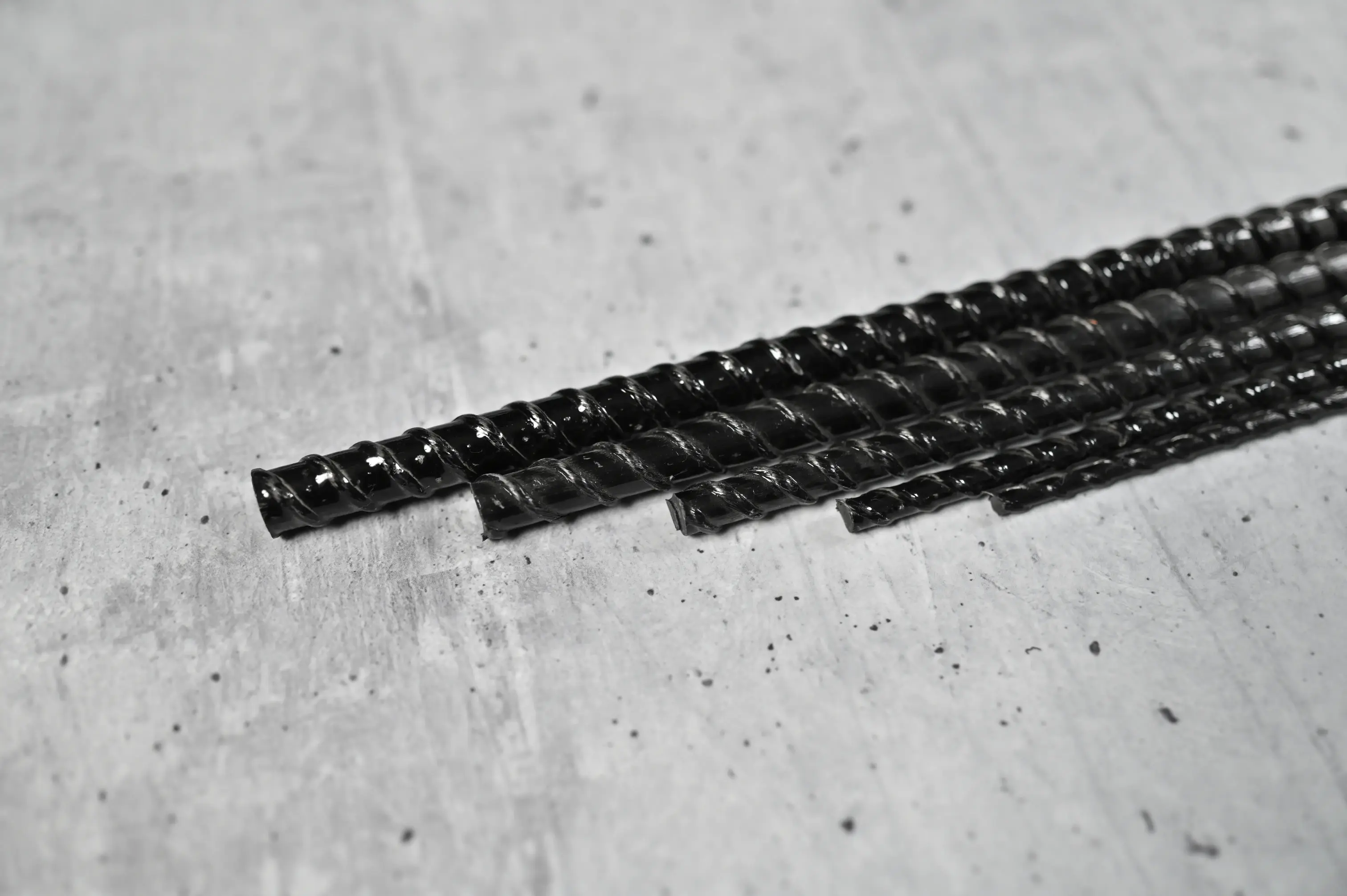

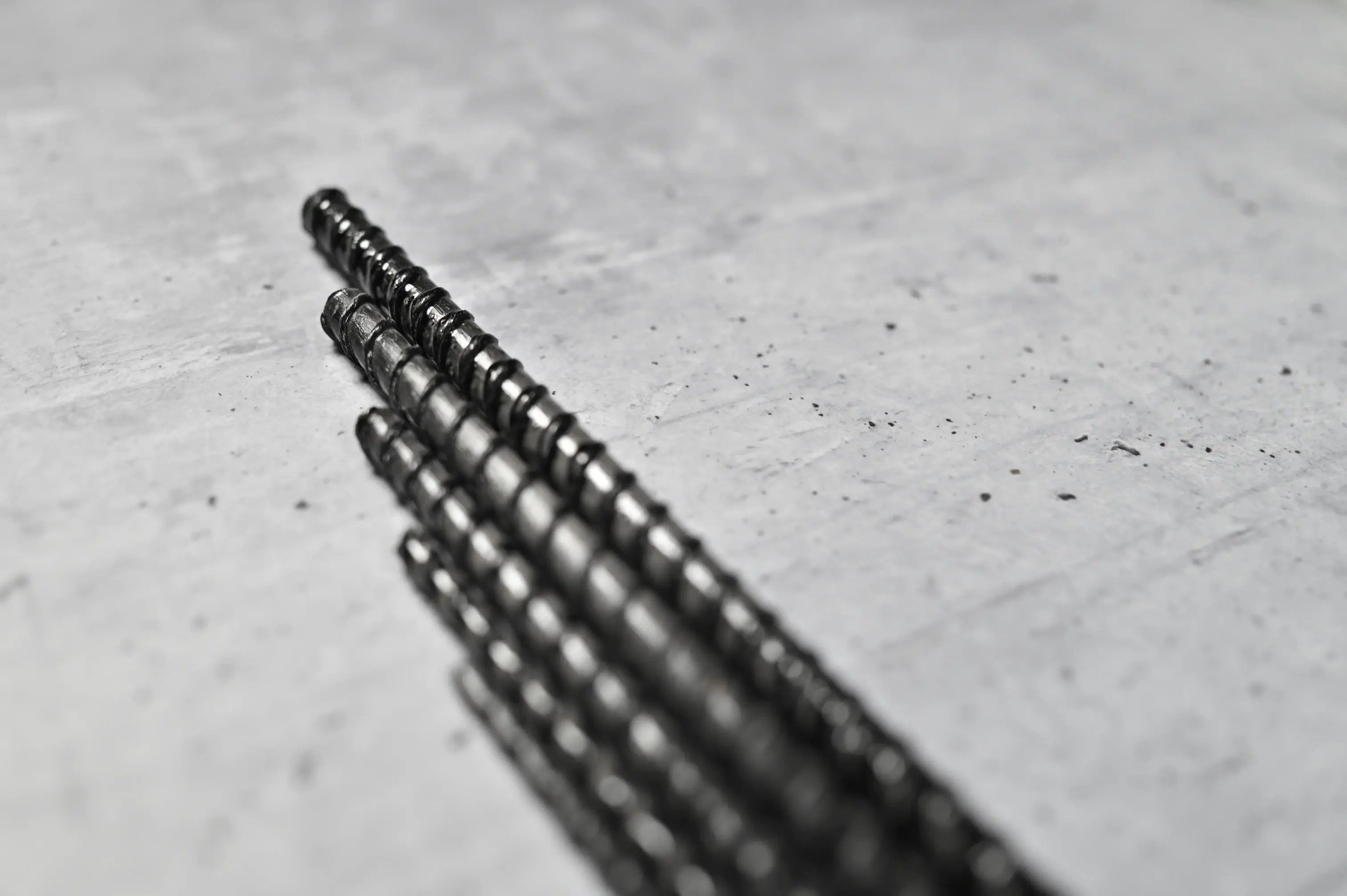

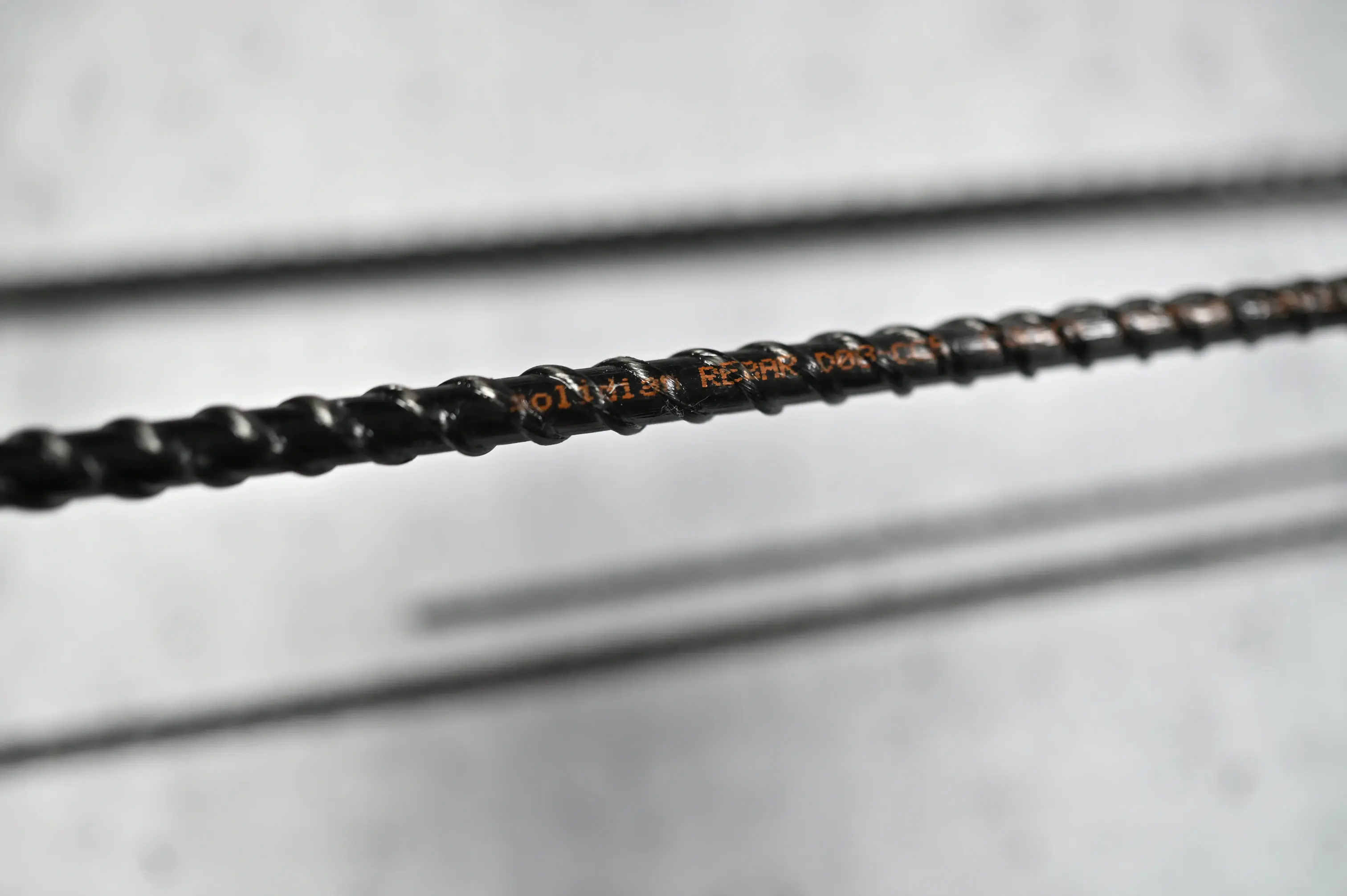

Non-metallic reinforcement for structural design made from carbon fibers.
solidian REBAR carbon is a non-corrosive, high-strength, non-metallic reinforcement material used in concrete structures. Made from high-strength carbon fibers our rebars offer excellent tensile strength, low weight and resistance to chemical and environmental degradation. They are ideal for use in harsh environments, such as critical infrastructure projects, including bridges, tunnels or marine structures.
solidian REBAR carbon could help engineers to extend the lifespan of concrete structures significantly while reducing maintenance costs and promote sustainability through enhanced durability and performance.
Product Features
Advantages
solidian REBARs will not rust and with their higher strength than steel, they are bringing life to filigree, elegant structures lasting for generations.
Our reinforcing bars can be used in any structural or architectural application where required material should be corrosion resistant or lightweight. Steel rebar corrosion is a matter of time, whatever thickness or sizes of concrete protection you are using. Because of that steel reinforced concrete structures need to be repaired or teared down after a certain time. With our carbon rebar this problem is solved and it has a number of additional special features that enable you to build a more sustainable concrete structure for our and our children’s future.
All benefits at a glance
- Corrosion-resistant: Reduced concrete cover, longer service life, lower maintenance costs for structures
- High tensile strength: Higher performance, lower overall construction costs
- Low weight: Lower transportation costs, easier handling
- Sustainable and resource-saving: Reduced resource usage, extended service life of structures
- Chloride- and alkali-resistant: Minimal to no repair requirements
- Better price-performance ratio than other corrosion-resistant reinforcements
Technical Information
- Composite material made from high-performance carbon fibers
- Characteristic short-term tensile strength: ≥ 2000 N/mm²
- Available diameters: 4, 6, 8, 10 and 12 mm
- Standard length: 6 m - available up to 12 m
reinforcements for the future generations
High Tensile Strength
Recyclable
Long Life Span
Corrosion Free
Lightweight and easy to install
Reference project
Projects
Bürgerspital Solothurn
Horizontal and vertical elements are securely mounted in front of the windows, enclosing the entire building. The interplay between space and light was a crucial aspect of the façade design. This project wouldn’t have been feasible with...
read more
Projects
Underground parking garage Marquardtbau Stuttgart
In 2017, KNAAK+REICH project office was tasked with strengthening the structure of an underground car park and protecting it from further corrosion. To minimize the load on the approximately 1,600 m² area, a lightweight solution was...
read more
Projects
Bosporous bridge
For the cladding of bridge pylons at a height of 320 meters, the façade panels needed to be both lightweight and strong. Due to the substructure requirements and the challenges of handling at such great heights, each panel's weight was...
read more
Product Applications
Non-metallic reinforcing bars are predestined for use in all areas where high-performance reinforcements are required, and aggressive environmental impacts, such as chlorides, are present.
- Bridge construction
- Concrete slabs like industrial floors, parking decks, or driveways
- Sewage facilities
- Marine structures, hydraulic engineering structures
- Façades, balconies
- Tunnel and mining construction
